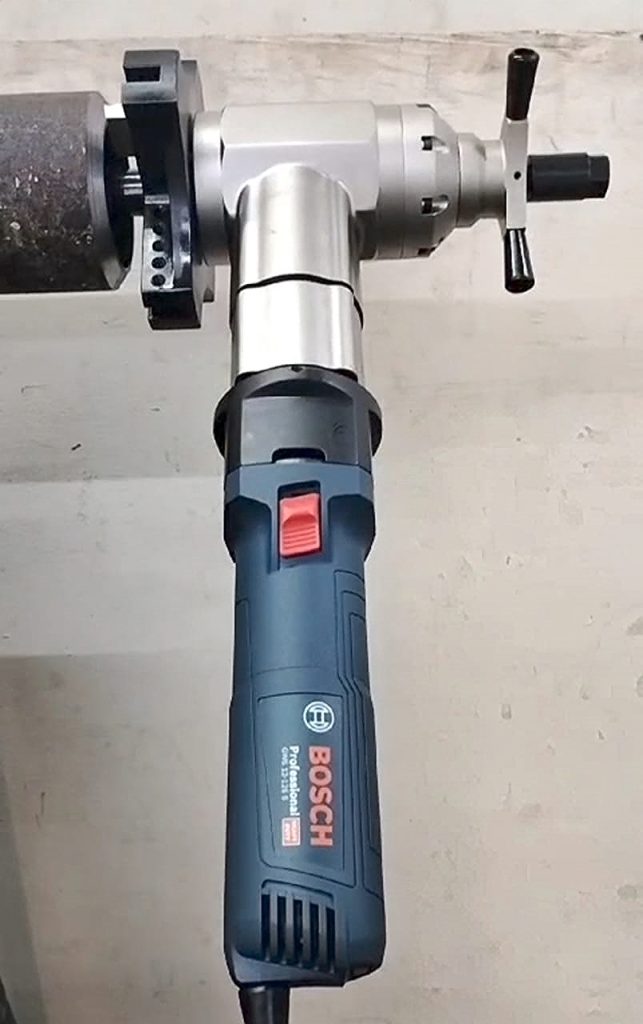

FM-4500 Pipe Beveling Machine
FM-4500 Pipe Beveling Machine
Specification:
The FM-4500 Pipe Beveling Machine is a powerful beveller, facer and chamfering unit that is a credit to any pipe fabricating shop. Available in electric, either 120v or 240v, and pneumatic. Positively one of the best bevellers available worldwide.
| Drive | Electric | Pneumatic |
|---|---|---|
| Locking Range MM (inch) | 39-104 (1.9/16-4.1/16) | 39-104 (1.9/16-4.1/16) |
| Idle Speed RPM | 70 | 70 |
| Torque NM (lb.ft) | 245 (180.70) | 180 (132.76) |
| Feed Stroke MM (inch) | 40.5 (1.9/16) | 40.5 (1.9/16) |
| Pneumatic Power HP | 1.33 | |
| Air Consumption cfm | 50-60 | |
| Air Pressure psi | 90 | |
| Electric Power Watts | 1020 | |
| Voltage | 120/240 V | |
| Net Weight Kg (lb) | 18.0 (39.70) | 17.0 (37.47) |
Beveling Machines and Ranges ID.
Range: 3/4" - 1.5/8" (20 - 42mm) ID.
Range: 1.1/8" - 3.0" (28 - 76mm) ID.
Range: 1.0" - 4.0" (23 - 104mm) ID.
Range: 1.9/16" - 4.1/16" (39 - 104mm) ID.
Range: 2.0 - 8.0" (49 - 203mm) ID.
Range: 4.0" - 12.0" (100 - 306mm) ID.
